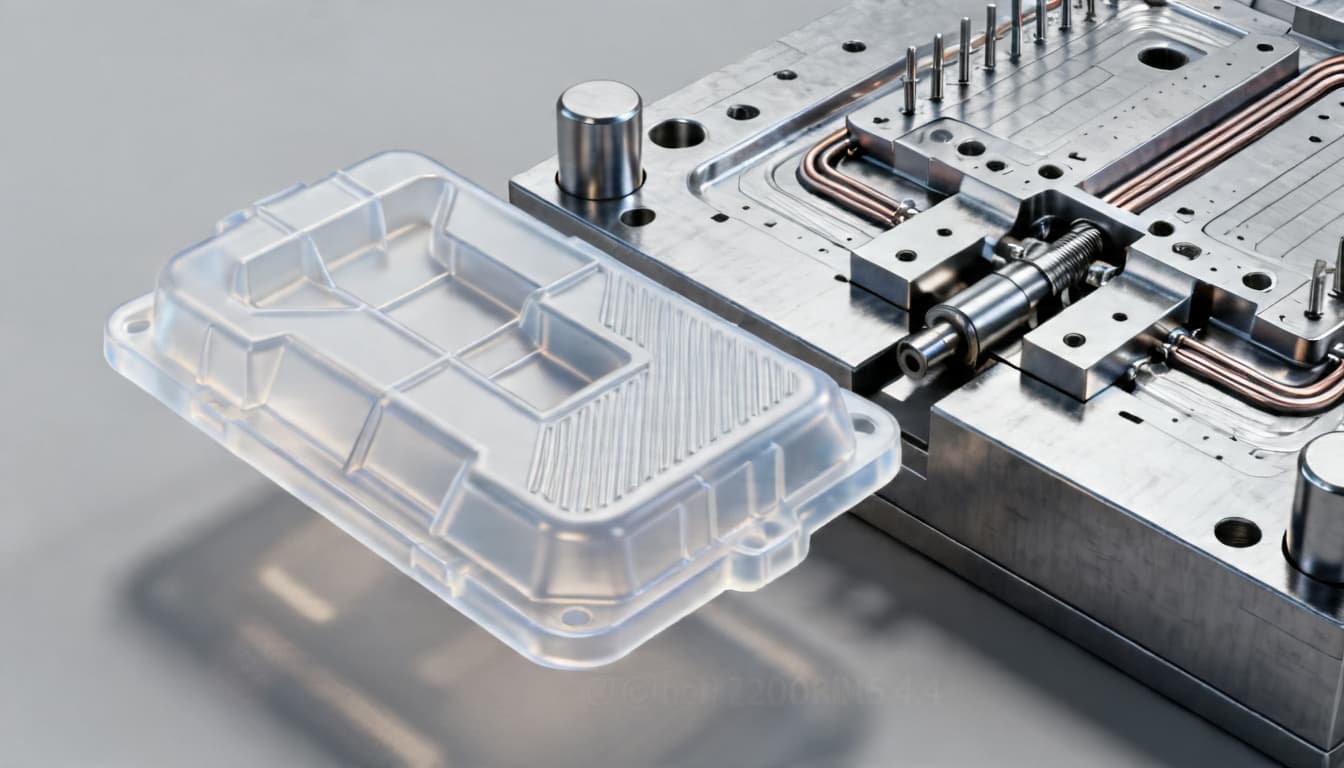

Decoding Mold Flow Analysis: Essential Insights for Optimizing Your Design Process
Imagine investing significant resources in an injection molding project, only to find defects and inefficiencies at the production stage. Mold flow analysis (MFA) can prevent these costly setbacks by simulating the flow of molten plastic in your mold design. Understanding this tool's capabilities is crucial for refining your design process and ensuring product quality.
Understanding Mold Flow Analysis: The Basics
What is Mold Flow Analysis?
Mold flow analysis is a simulation process used to predict how plastic will flow during the injection molding process. By using software tools, engineers can visualize potential flow issues such as air traps, weld lines, and sink marks before manufacturing begins.
Why is MFA Important?
Implementing MFA allows for early detection of design flaws, reducing the risk of defects and minimizing costly revisions. It provides insights into optimal gate locations, material selection, and processing conditions, ultimately enhancing product performance and manufacturability.
Key Parameters in Mold Flow Analysis
Melt Temperature
The melt temperature is critical for ensuring proper flow and material properties. For example, ABS typically requires a melt temperature of 220-250°C, while PP ranges from 200-240°C. Correct melt temperature prevents issues like short shots and degradation.
Mold Temperature
Mold temperature affects the cooling rate and quality of the finished part. An optimal mold temperature for PC is 80-110°C, while PA66 benefits from 80-100°C. Proper control reduces warpage and internal stresses.
Injection Pressure
Injection pressure must be carefully calibrated to ensure complete cavity filling without causing flash. Typical pressures range from 50 to 150 MPa, depending on the material and part complexity.
Material Considerations for Mold Flow Analysis
| Material | Melt Temperature (°C) | Mold Temperature (°C) | Injection Pressure (MPa) |
|---|---|---|---|
| ABS | 220-250 | 60-80 | 60-100 |
| PP | 200-240 | 40-60 | 50-90 |
| PC | 270-320 | 80-110 | 80-150 |
Choosing the Right Material
Material selection significantly impacts the mold flow analysis results. For example, TPE offers flexibility but may pose challenges in achieving uniform cooling. Conversely, POM provides excellent dimensional stability but requires precise control of mold temperature to avoid voids.
Common Defects and Solutions
Weld Lines
Weld lines occur where two flow fronts meet, often leading to weak spots. To minimize weld lines, consider increasing the melt temperature or optimizing gate locations to ensure uniform flow.
Sink Marks
Sink marks are depressions on the part surface caused by uneven cooling. Reducing wall thickness or increasing packing pressure can help mitigate this defect.
Air Traps
Air traps can cause voids and incomplete filling. Adequate venting and strategic placement of vents can alleviate these issues, ensuring a smooth flow of material.
Best Practices for Mold Flow Analysis
- Start with a comprehensive design review to identify potential problem areas.
- Use accurate material data and processing parameters in your simulations.
- Run multiple simulations to explore different scenarios and validate results.
- Collaborate with material suppliers and molding experts for insights and recommendations.
- Continuously update the model based on real-world production feedback.
Practical Tips for Successful Mold Flow Analysis
Tip: Always verify simulation results with actual mold trials. While MFA provides valuable insights, real-world conditions can introduce variables not captured in simulations. Adjust parameters as needed to achieve optimal performance.
Conclusion: Harnessing the Power of Mold Flow Analysis
Mold flow analysis is an indispensable tool for injection molding engineers seeking to optimize design processes and enhance product quality. By understanding key parameters, selecting appropriate materials, and addressing common defects, you can leverage MFA to its full potential. Remember, the success of your project hinges on a balance of accurate simulations and practical experience. For more insights or to get a free quote, connect with our expert team at Panda Molding.
