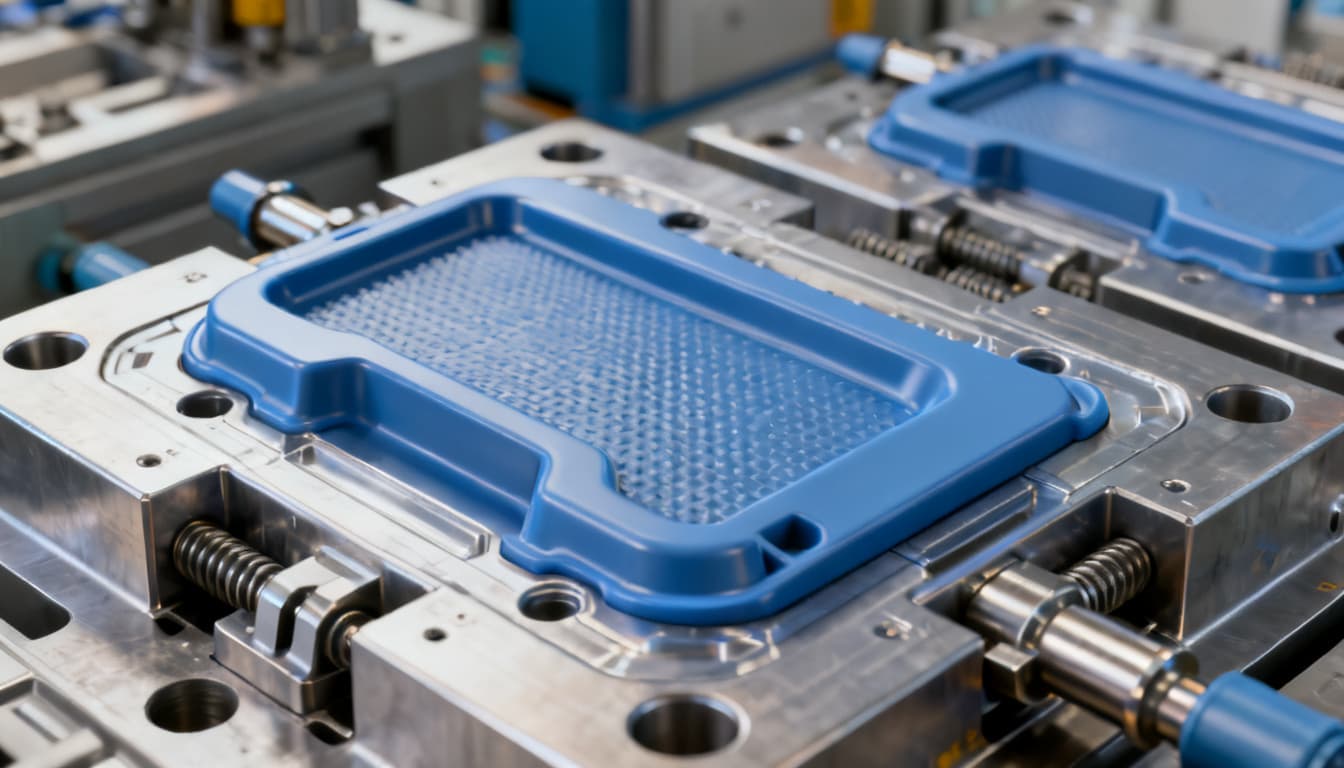

Minimize Cycle Time in Injection Molding: A Troubleshooting Guide for Engineers
Reducing cycle time in injection molding is a critical challenge that can significantly impact production efficiency and cost. Engineers often face the dilemma of balancing speed with quality, where a hastily reduced cycle time might lead to defects. This guide offers practical insights into optimizing cycle time without compromising product integrity.
Understanding the Basics: Key Parameters
Melt Temperature and Its Impact
Setting the correct melt temperature is crucial. For example, ABS typically requires a melt temperature between 210-250°C. Deviating from these values can lead to incomplete filling or defects such as burn marks.
Mold Temperature Control
Mold temperature is another critical parameter. For PC (Polycarbonate), maintaining mold temperatures between 80-100°C can help in achieving optimal surface finish and dimensional stability. Inadequate mold temperature can result in warpage or sink marks.
Injection Pressure and Speed: Striking the Right Balance
Optimizing Injection Pressure
Injection pressure directly influences the fill time and part quality. For materials like PP (Polypropylene), a pressure range of 60-100 MPa is common. Excessive pressure can cause flash, while too low pressure may lead to short shots.
Adjusting Injection Speed
Injection speed should be adjusted based on the material and part geometry. A fast injection speed is beneficial for thin-walled parts but may cause issues like jetting in thicker sections. A balanced approach, often achieved through trial and error, is essential.
Material Selection: Comparing Common Thermoplastics
| Material | Melt Temp (°C) | Mold Temp (°C) | Injection Pressure (MPa) |
|---|---|---|---|
| ABS | 210-250 | 50-80 | 70-110 |
| PP | 180-230 | 20-70 | 60-100 |
| PC | 270-320 | 80-100 | 80-140 |
Cycle Time Reduction: Step-by-Step Process
- Analyze Current Cycle Time: Break down the cycle into phases: filling, cooling, and ejection. Identify which phase takes the longest.
- Optimize Cooling Time: Use conformal cooling channels to reduce cooling time. Ensure mold temperature is within optimal range.
- Adjust Process Parameters: Fine-tune injection speed and pressure. Consider material-specific adjustments.
- Conduct Trials: Implement changes in small steps, monitoring for defects or quality issues.
- Review and Iterate: Continuously monitor and adjust based on feedback and production data.
Common Defects and Solutions
Addressing Warpage
Warpage often results from uneven cooling. Ensuring uniform mold temperature and using materials with similar shrinkage rates can mitigate this issue.
Preventing Flash
Flash occurs due to excessive injection pressure or poor mold clamping. Ensuring proper mold alignment and pressure settings is key.
Practical Tips for Engineers
Tip: Regularly calibrate your equipment to ensure accuracy in temperature and pressure settings. This can prevent many common defects and help maintain consistent cycle times.
Conclusion: Key Takeaways
Minimizing cycle time in injection molding requires a careful balance of process parameters, material selection, and equipment maintenance. By understanding the specific needs of each material and adjusting parameters accordingly, engineers can achieve efficient production without compromising quality. For a detailed consultation or to get a free quote, reach out to our experts at Panda Molding.
