Optimizing Injection Mold Conformal Cooling Channels for Maximum Efficiency
Injection molding professionals often grapple with the challenge of reducing cycle times without compromising part quality. One solution lies in optimizing conformal cooling channels, a strategy that can dramatically enhance the thermal management of molds. This article delves into the technical nua
Optimizing Injection Mold Conformal Cooling Channels for Maximum Efficiency
Injection molding professionals often grapple with the challenge of reducing cycle times without compromising part quality. One solution lies in optimizing conformal cooling channels, a strategy that can dramatically enhance the thermal management of molds. This article delves into the technical nuances and practical considerations of this approach.
Understanding Conformal Cooling Channels

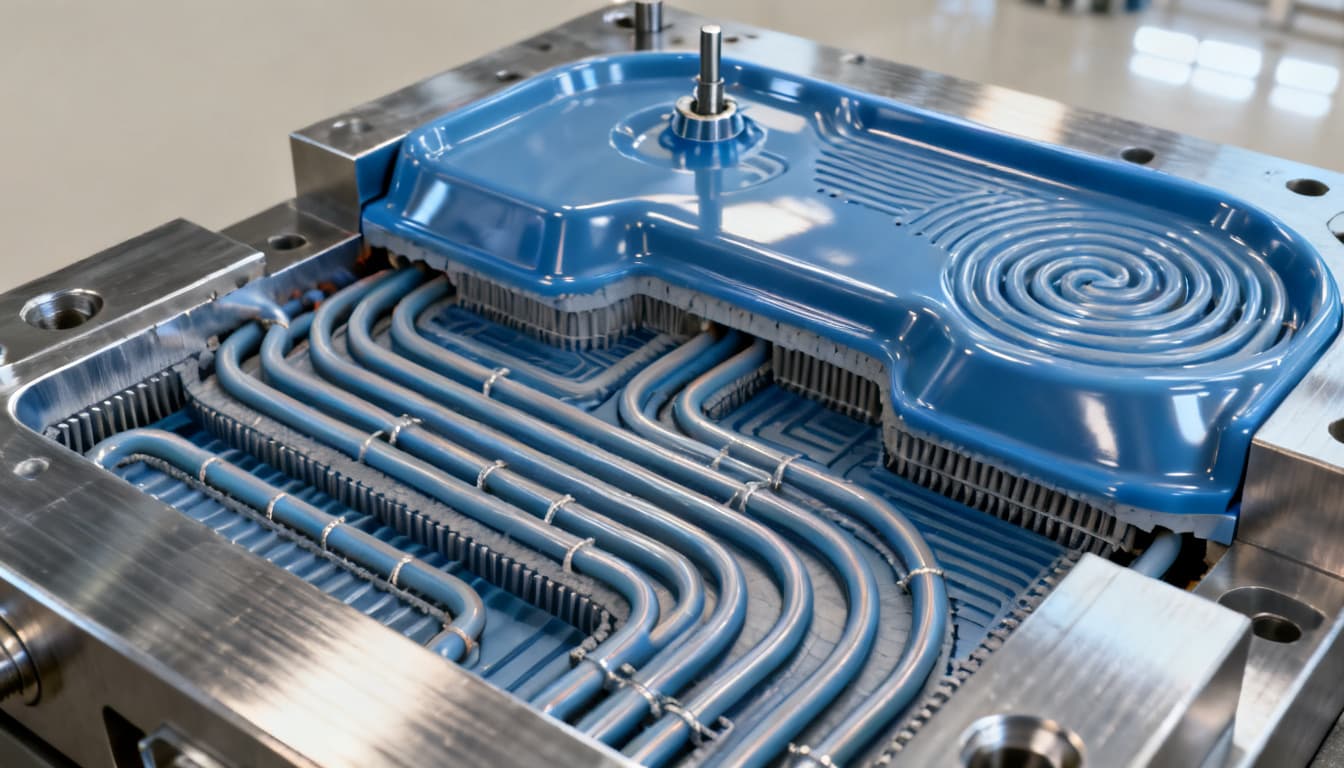

Conformal cooling channels are designed to follow the complex contours of the mold cavity, as opposed to traditional straight-line channels. This alignment allows for more uniform cooling, which is crucial for maintaining part integrity and reducing cycle times.
Benefits Over Traditional Cooling
Traditional cooling channels often result in uneven temperature distribution, leading to defects like warping and sink marks. Conformal channels, by closely following the part geometry, ensure consistent cooling and reduce these defects.
| Cooling Method | Cycle Time Reduction | Defect Reduction |
|---|---|---|
| Traditional | 5-10% | Minimal |
| Conformal | 20-30% | Significant |
Designing Effective Conformal Cooling Channels
Designing effective conformal cooling channels requires a deep understanding of mold design principles and thermal dynamics. Here are some key considerations:
Material Selection
The choice of material for both the mold and the part is critical. Commonly used materials include:
| Material | Thermal Conductivity (W/mK) | Typical Applications |
|---|---|---|
| ABS | 0.2 | Consumer products |
| PP | 0.22 | Packaging |
| PC | 0.19 | Automotive, Electronics |
Channel Geometry
The geometry of the channels should closely follow the part contours to maximize heat transfer efficiency. Channels should have a diameter of 6-12 mm and be placed 3-5 mm from the mold surface.
Implementing Conformal Cooling
Implementation involves several steps, from design to testing. Here’s a step-by-step guide:
- Design Phase: Use CAD software to design the channels based on the part geometry and cooling requirements.
- Simulation: Conduct thermal simulations to predict cooling performance and identify potential issues.
- Prototyping: Create a prototype using additive manufacturing techniques such as DMLS (Direct Metal Laser Sintering).
- Testing: Perform initial tests to validate design assumptions and make necessary adjustments.
- Finalization: Once testing is successful, finalize the mold design and proceed to production.
Common Challenges and Solutions
Despite its advantages, implementing conformal cooling is not without challenges. Here are some common issues and their solutions:
High Initial Costs
The upfront cost of designing and manufacturing conformal cooling channels can be high. However, the reduction in cycle times and improvement in part quality often justify this investment.
Complexity in Design
Designing conformal channels requires advanced software and expertise. Collaborating with experienced designers or utilizing services like Panda Molding can mitigate this challenge.
Practical Tip: Always conduct a cost-benefit analysis before implementing conformal cooling to ensure it aligns with your production goals.
Conclusion
Conformal cooling channels offer a promising solution for optimizing injection molding processes. By improving thermal management, they can significantly reduce cycle times and enhance part quality. However, successful implementation requires careful planning, expert design, and a willingness to invest in advanced manufacturing technologies.
For those looking to implement conformal cooling channels, a partnership with a knowledgeable provider like Panda Molding can be invaluable. Their expertise in rapid tooling and material selection can help navigate the complexities of this advanced technique. For more information, consider reaching out to Panda Molding for a free quote.
