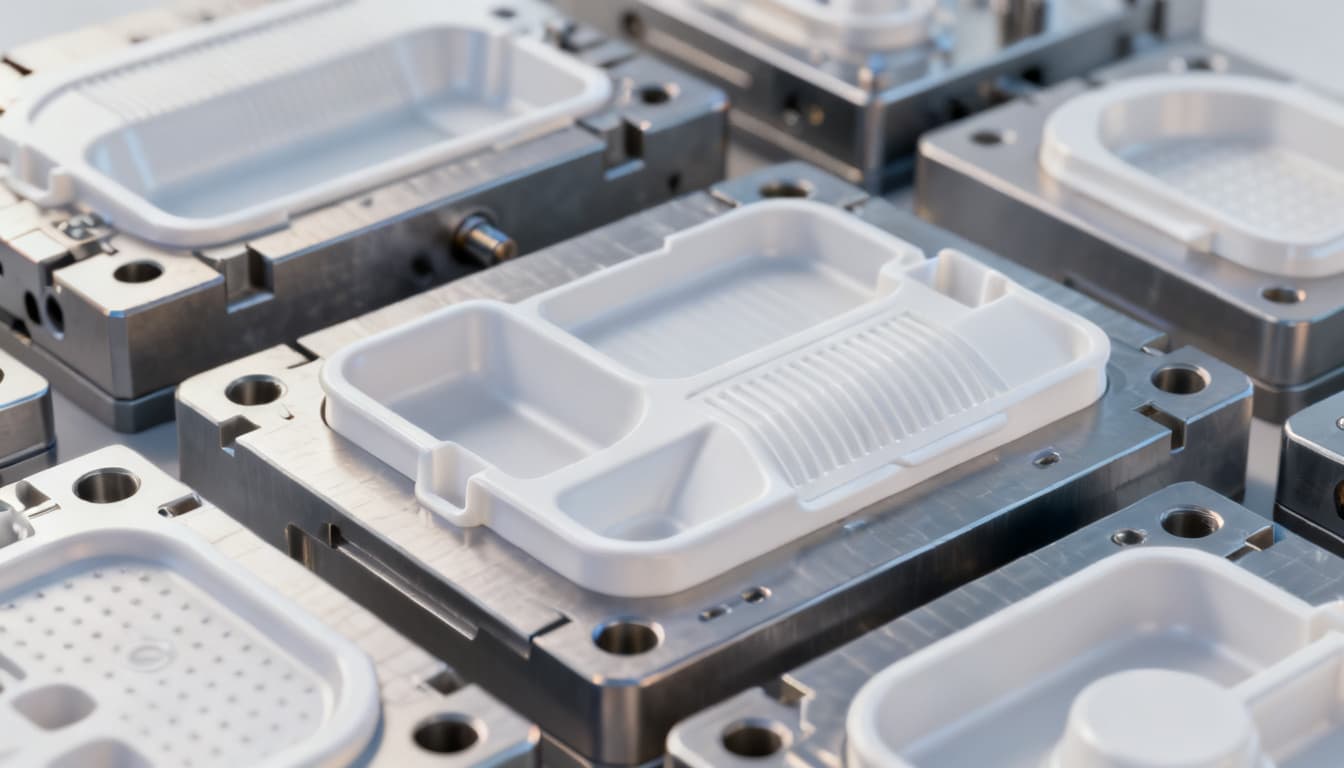

The OEM Engineer’s Guide to Validating Custom Medical Plastic Components: From Biocompatibility to Sterilization
If you’re an OEM engineer responsible for a Class II or III device, the last 18 months have delivered an uncomfortable wake-up call. A PlasticsToday analysis confirmed that manufacturing defects have overtaken design flaws as the leading cause of medical device recalls in the United States. The FDA’
The OEM Engineer’s Guide to Validating Custom Medical Plastic Components: From Biocompatibility to Sterilization
Why Manufacturing Defects Are Now the #1 Recall Driver for Medical Plastics
If you’re an OEM engineer responsible for a Class II or III device, the last 18 months have delivered an uncomfortable wake-up call. A PlasticsToday analysis confirmed that manufacturing defects have overtaken design flaws as the leading cause of medical device recalls in the United States. The FDA’s recall and early alert feed and the public recall database now routinely list injection-molded components—luer fittings, stopcocks, cannulae, and surgical instrument handles—that failed biocompatibility, cracked after sterilization, or shed particulate matter in clinical use.
One recent case tracked by MedTech Dive involved perforation injuries linked to a plastic device component where the root cause was traced to inconsistent molding conditions, not a design error. These events aren’t anomalies; they’re the predictable result of skipping validation steps that connect material selection, molding process qualification, and sterilization compatibility. For the OEM engineer, the message is clear: validating a custom medical plastic component is no longer a box-ticking exercise. It’s a multi-disciplinary gauntlet that starts with biocompatibility and ends with a sterilized, fully traceable part that won’t generate a recall letter.
This guide walks you through that gauntlet—from decoding ISO 10993 to selecting materials that survive repeated sterilization cycles, and from designing for moldability to assembling the documentation package your regulatory team needs. Every recommendation is grounded in the realities of injection molding supply chains and the standards that govern them.
Decoding Biocompatibility: ISO 10993 and the Material-Screening Gauntlet
Biocompatibility is not a resin certificate. It’s a system-level property that depends on the base polymer, any additives or colorants, the molding process, and the sterilization method. ISO 10993-1 requires that every material that contacts the patient—directly or indirectly—undergo a biological evaluation appropriate to the nature and duration of contact. For injection-molded components, the workhorse standard is ISO 10993-5 (cytotoxicity), often supplemented by sensitization, irritation, and systemic toxicity endpoints depending on the device classification.
What trips up many OEM teams is assuming that a resin supplier’s “medical grade” designation or a USP Class VI certificate is sufficient. It isn’t. The molding process introduces variables—shear-induced degradation, residual monomers, mold release agents, and even trace metals from barrel wear—that can alter the biological response. That’s why Americhem and other medical compounders pre-test formulations to ISO 10993-5 on molded plaques, not just pellets. And it’s why your validation plan must include cytotoxicity testing on finished, sterilized components from production-intent tooling.
Packaging materials add another layer. ASTM F2475-20 provides a guide for biocompatibility evaluation of medical device packaging materials, because a tray or pouch that leaches extractables onto a sterile component can compromise the entire device. The table below maps common test endpoints to material families you’ll encounter in injection molding, giving you a practical screening framework before you commit to a full ISO 10993 panel.
| Biocompatibility Endpoint | Typical Test Method | Material Families That Usually Pass (with caveats) | Red Flags to Investigate |
|---|---|---|---|
| Cytotoxicity (ISO 10993-5) | MEM elution, agar diffusion | Medical-grade PP, PE, PEEK, PEI (Ultem), PC (with proper stabilization) | PVC with DEHP plasticizers, acetal homopolymer, any resin with unknown colorant/additive package |
| Sensitization (ISO 10993-10) | Guinea pig maximization, LLNA | PEEK, PEI, PP, PE | Epoxy-based coatings, uncured silicone, certain thermoplastic elastomers |
| Irritation (ISO 10993-10) | Intracutaneous reactivity | PEEK, PEI, medical PC, PP | Residual mold release, acidic or basic degradation products from processing |
| Systemic Toxicity (ISO 10993-11) | Acute, subchronic | Implant-grade PEEK, PEI, UHMWPE | Materials with heavy metal catalysts, radiopaque fillers not biocompatibility-tested |
| Genotoxicity (ISO 10993-3) | Ames, chromosomal aberration | PEEK, PEI, PP, PE | Any resin with reactive monomers, certain colorants |
| Hemocompatibility (ISO 10993-4) | Hemolysis, thrombosis | PEEK, PEI, medical PC, PP (for non-blood-contact applications) | Blood-contacting devices require dedicated panel; material alone insufficient |
Tip: When you receive a resin supplier’s biocompatibility statement, check whether the testing was performed on injection-molded specimens processed within the melt temperature and residence time window you intend to use. A certificate based on compression-molded film tells you nothing about the degradation products your process might generate.
Material Selection Trade-Offs: PEEK, PEI, and PC Under Sterilization Loads
Sterilization is the crucible that reveals whether your material choice was right. A polymer that passes cytotoxicity on a virgin plaque can yellow, embrittle, or leach extractables after 50 autoclave cycles or a 50-kGy gamma dose. The OEM engineer must balance sterilization compatibility, mechanical performance, moldability, and cost—and then lock in that choice because changing resins later triggers a re-validation nightmare. The comparison below draws on AIP Precision’s biocompatible plastics guide, the OEM perspective from Shell-Case, and the OEM vs. non-OEM parts philosophy articulated by FS-Elliott—that validated, traceable materials are the only way to avoid long-term liability.
| Material | Sterilization Compatibility | Mechanical Retention After Repeated Cycles | Moldability & Processing Notes | Relative Cost (1–5, 5 highest) | Best-Fit Application |
|---|---|---|---|---|---|
| PEEK (unfilled) | Autoclave (excellent), EtO, gamma, e-beam | Retains >90% tensile strength after 100+ autoclave cycles; minimal discoloration | High melt temp (360–400°C); requires oil-heated or electric-heated molds; abrasive on screws | 5 | Reusable surgical instruments, implant trials, structural components |
| PEI (Ultem 1000) | Autoclave (good, may yellow), EtO, gamma, e-beam | Good retention; some embrittlement after >50 autoclave cycles; gamma can cause slight yellowing | Melt temp 340–380°C; requires drying; moderate mold temps (135–165°C); good flow for thin walls | 4 | Sterilization trays, fluid handling manifolds, reusable device housings |
| Medical-Grade Polycarbonate (PC) | EtO, e-beam (limited); not recommended for autoclave or high-dose gamma | Prone to stress cracking after EtO if molded-in stress not relieved; gamma causes yellowing and embrittlement | Easy to mold; wide processing window; susceptible to moisture; requires annealing for EtO | 2 | Single-use surgical devices, clear fluid reservoirs, disposable connectors |
| Medical-Grade Polypropylene (PP) | EtO, gamma (stabilized grades), e-beam; not for autoclave | Gamma can cause chain scission and embrittlement over time; stabilized grades retain properties better | Excellent flow; low cost; can be molded with high cavitation; requires careful gate design to avoid warpage | 1 | Disposable syringes, specimen containers, caps and closures |
| Polysulfone (PSU) | Autoclave (excellent), EtO, gamma, e-beam | Excellent retention; minimal degradation after repeated autoclave; transparent grades stay clear | Melt temp 330–370°C; requires drying; higher viscosity than PC; sensitive to thick sections | 3 | Reusable respiratory components, anesthesia masks, surgical instrument handles |
The cost column tells only part of the story. A third-party comparison by Elite Biomedical Solutions underscores that using a non-validated alternative resin to save $0.15 per part can lead to a recall that costs millions. When you select a material, you’re also selecting the validation burden: PEEK may be expensive, but its autoclave tolerance eliminates the need for a separate low-temperature sterilization cycle, simplifying your sterilization validation. That’s the kind of system-level trade-off OEM engineers must make early.
Designing for Moldability and Validation: From Gate Location to Sterilization Validation
Even the most biocompatible resin will fail validation if the part design fights the molding process. In medical injection molding, three design rules carry disproportionate weight because they directly affect bioburden control, sterilization resistance, and test repeatability.
1. Wall thickness uniformity. Variations greater than 15–20% create sink marks and internal voids. Those voids can harbor bioburden that survives sterilization, and they concentrate stress during EtO or autoclave exposure, leading to cracks. Design ribs at 60% of nominal wall thickness and use generous radii at intersections.
2. Gate placement and knit lines. In fluid-path components, a knit line that forms downstream of a gate can become a leak path or a site for biofilm adhesion. Position gates so that knit lines occur in low-stress, non-fluid-contact areas. For transparent PC or polysulfone parts, a single edge gate or a valve-gated hot drop often yields the best optical clarity and lowest molded-in stress.
3. Draft angles and release agents. Medical components must release cleanly without external mold release sprays, which leave residues that fail cytotoxicity. Specify a minimum draft of 1° on core faces and 0.5° on cavity faces for unfilled resins; for glass-filled grades, increase to 2–3°. Work with your molder to use polished tool steel and, if necessary, medical-grade internal mold release additives that have been pre-qualified to ISO 10993-5.
The validation build itself must couple molding process qualification (IQ/OQ/PQ) with biocompatibility and sterilization testing. Americhem’s healthcare compounding workflow illustrates the sequence: material formulation is pre-screened for cytotoxicity, then molded on production-intent tooling, and the resulting parts are tested after sterilization. Your molder should provide a process validation plan that includes material traceability, cleanroom molding (ISO Class 8 or better), and a pre-production cytotoxicity screening on actual molded samples. Shell-Case’s OEM guide highlights that lead times for custom medical components often hinge on how quickly the molder can execute this validation sequence, so align your project schedule with the molder’s qualification milestones.
| Design Parameter | Recommended Range / Practice | Validation Impact | Common Pitfall |
|---|---|---|---|
| Nominal wall thickness | 1.5–3.0 mm for most medical parts; uniform within ±15% | Prevents sink marks that trap bioburden; reduces molded-in stress for EtO/autoclave | Thick bosses causing voids; sudden transitions without radii |
| Gate type and location | Edge gate or valve gate away from fluid path; knit line in non-critical zone | Minimizes leak paths and biofilm adhesion sites; improves burst strength consistency | Center-gated round parts with knit line at high-stress point |
| Draft angle | 1° min on core, 0.5° on cavity; 2–3° for glass-filled | Enables release without spray; reduces ejection stress that can cause microcracks | Zero draft on textured surfaces; relying on mold release |
| Melt temperature window | Per resin supplier’s medical-grade datasheet; avoid upper 10°C of range | Prevents polymer degradation that alters biocompatibility; ensures consistent molecular weight | Running too hot to fill thin sections, generating cytotoxic residuals |
| Residence time | <5 minutes for PC, <10 minutes for PEI/PEEK at temperature | Limits thermal degradation products; critical for cytotoxicity pass | Large barrel capacity relative to shot size causing extended residence |
| Mold temperature control | Uniform within ±5°C across cavity; conformal cooling for complex geometries | Reduces warpage and residual stress; improves dimensional stability for sterilization | Hot spots causing differential shrinkage and stress concentrations |
| Cleanroom class | ISO Class 8 (minimum) for molding; Class 7 for assembly/packaging | Controls particulate and bioburden before sterilization; required for terminal sterilization validation | Molding in uncontrolled environment then washing—adds process variable |
Key Takeaway: A validation build isn’t a single event. Plan for three lots of molded parts, each produced on the same tool with the same process parameters, and subject all three to biocompatibility and sterilization testing. This approach gives you the statistical confidence that your process is reproducible and that the component will perform consistently in the field.
Frequently Asked Questions from OEM Engineers Validating Custom Plastic Components
Q: How do I select an injection molder that can handle ISO 10993-5 cytotoxicity testing?
Look for molders with documented medical molding experience, ISO 13485 certification, and in-house or partnered biocompatibility testing capabilities. Ask for a process validation plan that includes material traceability, cleanroom molding, and a pre-production cytotoxicity screening on actual molded samples—not just resin datasheets. The molder should be able to provide a worst-case sample set from production-intent tooling and process parameters, and should have a change control agreement that flags any resin or process modification before it happens.
Q: What are the critical design features to avoid stress cracking during EtO sterilization?
Avoid sharp internal corners, maintain uniform wall thickness, and select materials with proven environmental stress crack resistance (ESCR) for EtO exposure. Polycarbonate, for example, requires thorough annealing after molding to relieve molded-in stresses. Gate locations should be placed away from high-stress regions, and cooling rates must be uniform to minimize differential shrinkage. If your part has snap-fits or press-fits, perform EtO exposure testing on assembled components, because assembly stresses compound the risk.
Q: When should I specify a custom compounded medical-grade resin instead of an off-the-shelf grade?
Custom compounding is warranted when you need a specific colorant that meets biocompatibility, a radiopaque filler, or a tailored lubricity package without sacrificing sterilization compatibility. Work with a compounder like Americhem that can pre-test formulations to ISO 10993-5 before molding trials. The compounder should provide a full regulatory support package, including a master access letter for the FDA, and be willing to lock the formulation so that no ingredient changes occur without your approval.
Q: How do I validate that a plastic component meets biocompatibility after molding, not just on raw material?
Perform biocompatibility testing on finished, sterilized components—not just on resin plaques. The molding process can introduce residuals (mold release, degradation products) that alter the biological response. Include worst-case samples from production-intent tooling and process parameters in your test plan. Typically, you’ll submit parts that have been molded at the upper end of the melt temperature and residence time window, then sterilized using the maximum dose or number of cycles the device will see. This approach ensures your validation covers the extremes of your manufacturing process.
Q: What documentation does an OEM need from the injection molder for FDA submission?
Expect a device master record (DMR) package that includes material certifications, process validation protocols (IQ/OQ/PQ), first article inspection reports, biocompatibility test reports per ISO 10993, and sterilization validation data. The molder should also provide a change control agreement for any future resin or process modifications. For Class II and III devices, the FDA will expect to see that the molder operates under ISO 13485 and that the process failure mode and effects analysis (PFMEA) covers molding variables that could affect biocompatibility or sterilization.
Q: How do I mitigate supply chain risks for medical-grade resins with long lead times?
Qualify at least two alternate resins that meet the same biocompatibility and sterilization profile during design verification. Work with your molder to maintain safety stock of approved lots and establish a resin change notification process that triggers a re-validation plan, as highlighted by recent recall trends linked to unapproved material substitutions. The PlasticsToday report on manufacturing defects underscores that many recalls originate from a supplier changing a resin grade or additive package without the OEM’s knowledge. A robust supplier quality agreement that mandates advance notice and your approval for any change is your first line of defense.
References & Further Reading
- FDA Medical Device Recalls and Early Alerts – Official FDA feed for awareness of recall events.
- FDA Medical Device Recall Database – Searchable database of classified recalls since 2002.
- MedTech Dive Recalls News – Industry coverage of recent medical device recalls and safety alerts.
- PlasticsToday: Manufacturing Defects Now #1 Recall Reason – Analysis linking faulty manufacturing to recall trends.
- Canyon Components: ISO 10993-1 Materials – Overview of biocompatibility testing requirements for medical device materials.
- ASTM F2475-20: Biocompatibility Evaluation of Medical Device Packaging Materials – Standard guide for packaging material biocompatibility.
- Americhem Healthcare Medical Compounds – Custom medical-grade thermoplastic compounds and biocompatibility support.
- AIP Precision: Biocompatible Plastics Selection Guide – Material testing to FDA approval pathway for implant-grade plastics.
- Shell-Case: What is OEM? A Guide for Portable Medical Device Manufacturers – OEM perspective on materials, ISO standards, and supplier vetting.
- FS-Elliott: OEM vs Non-OEM Parts Explained – The value of validated, traceable components from the OEM viewpoint.
- Elite Biomedical Solutions: OEM vs. Third-Party Medical Devices – Comparison of risks and costs associated with non-OEM parts.
Validating a custom medical plastic component is a cross-functional challenge that demands tight coordination between material science, injection molding process control, and regulatory strategy. By treating biocompatibility as a system property, selecting materials that survive your sterilization cycle without degrading, and designing parts that mold repeatably without introducing contaminants, you build a validation package that withstands FDA scrutiny and keeps patients safe. When you’re ready to discuss a specific component, our engineering team can help you map the validation pathway from resin selection to full IQ/OQ/PQ. Get a quote or start a technical conversation today.
