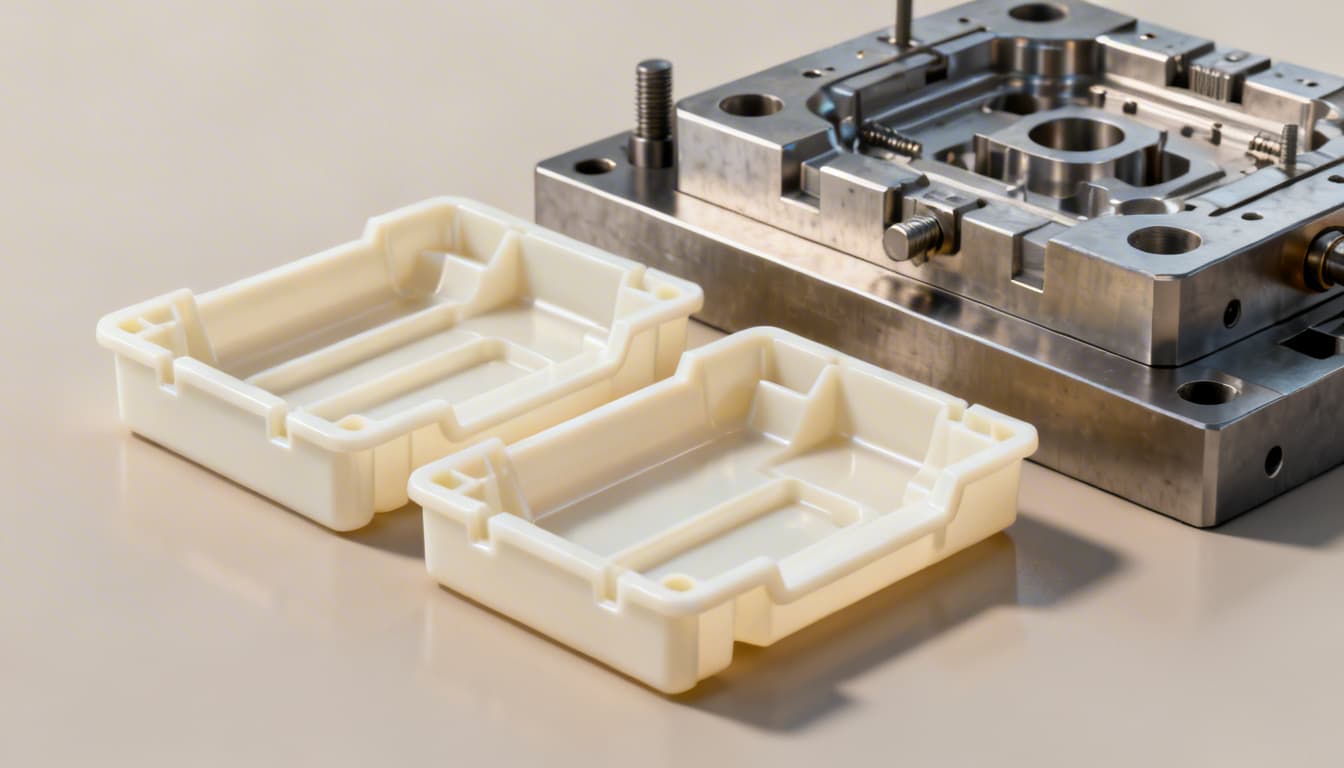

The Ultimate Injection Molding Design Guide: Best Practices for Optimal Molded Plastic Parts
Every injection molding project begins with the goal of producing high-quality plastic parts efficiently and cost-effectively. However, achieving this balance is often more challenging than it seems. As a seasoned injection molding engineer, I've seen how small design oversights can lead to costly production issues. This guide aims to provide you with the best practices in injection molding design, ensuring your parts are both functional and manufacturable.
Understanding Material Selection
Choosing the right material is the cornerstone of successful injection molding. Different materials offer varying properties that can significantly impact the performance and aesthetics of your final product.
Common Materials and Their Properties
| Material | Melt Temperature (°C) | Typical Applications | Key Properties |
|---|---|---|---|
| ABS | 220-250 | Automotive, Consumer Goods | High impact strength, good heat resistance |
| PP | 200-240 | Packaging, Textiles | Good fatigue resistance, chemical resistance |
| PC | 270-310 | Electronics, Construction | High clarity, excellent toughness |
| PA66 | 260-290 | Engineering Components | High mechanical strength, wear resistance |
Material Selection Tips
- Consider the end-use environment: Temperature, UV exposure, and chemical contact can dictate material choice.
- Balance cost and performance: Sometimes, a slightly more expensive material can reduce overall production costs by minimizing defects.
Designing for Manufacturability
Design decisions directly influence the manufacturability of plastic parts. By adhering to established design rules, you can avoid common defects and ensure efficient production.
Wall Thickness and Uniformity
Maintaining uniform wall thickness is crucial for preventing warping and sink marks. Ideally, walls should be between 1-3mm thick.
Draft Angles
Incorporating draft angles of 0.5-2° is essential for easy part ejection. Insufficient draft can lead to part sticking and surface defects.
Rib and Boss Design
- Ribs: Keep rib thickness to 60% or less of the wall thickness to avoid sink marks.
- Bosses: Ensure bosses have adequate support and are designed with fillets to reduce stress concentrations.
Optimizing Injection Molding Parameters
Fine-tuning injection molding parameters is key to producing high-quality parts. Here, we discuss critical parameters that need close attention.
Mold Temperature
Mold temperature affects surface finish and cycle time. For instance, ABS typically requires a mold temperature of 60-85°C.
Injection Pressure
Proper injection pressure ensures complete cavity filling without flash. Typical pressures range from 50-150 MPa, depending on material and part design.
Cycle Time
| Material | Cycle Time (seconds) |
|---|---|
| ABS | 30-60 |
| PP | 20-50 |
| PC | 40-80 |
Common Defects and Their Solutions
Defects in injection molded parts can arise from numerous sources. Understanding their causes and solutions can save time and resources.
Warping
Cause: Uneven cooling or inconsistent wall thickness.
Solution: Optimize cooling time and ensure uniform wall thickness.
Sink Marks
Cause: Thick sections or improper packing pressure.
Solution: Reduce section thickness and increase packing pressure.
Flash
Cause: Excessive injection pressure or mold misalignment.
Solution: Adjust injection pressure and ensure proper mold alignment.
Step-by-Step Design Checklist
- Define material requirements based on application.
- Design part with uniform wall thickness.
- Incorporate appropriate draft angles.
- Optimize rib and boss designs.
- Simulate mold flow for potential defect identification.
- Finalize design with feedback from manufacturing team.
Practical Tip: Always conduct a Design for Manufacturability (DFM) review before finalizing your design. This can catch potential issues early and save significant time and cost.
Conclusion
